Xentara How-To: Install Inspector Using Docker

Required Knowledge

• Basic Computer Navigation: Understanding how to navigate directories, open applications, and manage files on an operating system.
• Command Line Interface: Familiarity with opening and using the Command Prompt or PowerShell to execute basic commands.
• Docker Basics: Basic understanding of Docker, including how to pull images, run containers, and manage Docker environments.

Required Software

• Xentara minimum version 2.0
• Docker

Procedures

Step 1: Obtain the Docker-Compose File

Download the required docker-compose file for Xentara Inspector.

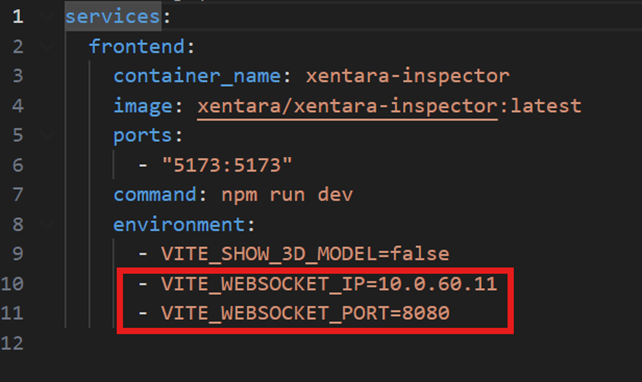

Step 2: Configure IP and Port

Edit the docker-compose file to configure the appropriate IP address and port settings for your environment.

Step 3: Load the File on the Xentara Host System

Transfer the docker-compose file to the system where Xentara is installed and running.

Step 4: Run the Docker-Compose Command

Execute the following command to start the container

docker-compose -f <filename> up -d

Step 5: Ignore the Timeout Message

A timeout message may appear during the process. This can be safely ignored.

Step 6: Verify the Container

Check the status of the containers using the following command:

docker ps -a

You can verify if a container is running or not.

Step 7: Start the Container

If the container is not running, start it manually using:

docker start <CONTAINER ID>

Step 8: Access the WebSocket

Open your web browser and connect to the WebSocket URL:

https://<device-ip>:<port>(8080)

Step 9: Accept the Certificate

When prompted, accept the security certificate to proceed.

Step 10: Open Xentara Inspector

In a new tab, navigate to the Xentara Inspector interface and start using the tool.

ip of the device: Port(5173)

Recommended Further Reading

For more information, visit https://docs.xentara.io/
